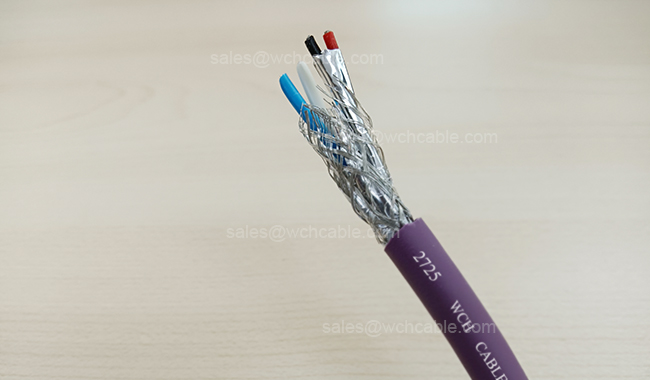

What is UL2725?
UL2725 is a style number among the family of PVC Cables. It is widely used for the wiring of electronic equipment and appliance, especially the most use of USB interconnection. Its insulation and outer jacket can be extruded by the economic Polyvinyl Chloride, which makes it very cost-saving in a project building.
What is the purpose of UL2725?
UL2725 is granted with a relatively low voltage 30V. It is suitable for purpose of external interconnection of various machine and device. The low voltage makes it safe and convenient for operation.
What is UL2725 called?
UL2725 is well known as a kind of PVC Cable. Someone calls it UL2725 cable or even UL2725 simply. UL2725 is mostly used as USB wiring. For that, people call it UL2725 USB cable, or just USB cable.
What is the difference between UL2725 and PVC Cable?
PVC Cable means a wide range of cables which are insulated or sheathed by Polyvinyl Chloride PVC. While UL2725 is one of the style numbers verified among the PVC Cable big family.
Technical Parameters
- Style number: UL2725
- UL safety test: passed
- Rated temperature: 80°C
- Rated voltage: 30V
- Insulation resistance: 10M ohm / km.
- CSA type: I/II, A
Cable Structure
- Conductor material: Highly pure copper wire strands.
- Insulation material: Polyvinyl Chloride PVC.
- Jacket material: Polyvinyl Chloride PVC.
- Screen shield material: pur tinned copper strands, optional.
Specification
| Style Number | Core Insulation Thickness | Sheath Thickness | Screen Shield | Use Purpose |
| UL2725 | 0.23mm minimum | 0.23mm minimum | Optional | Class 2 system |
Frequently Asked Questions
Question 1: I am looking for this UL2725 cable, but can I get it without the mark UL2725?
Answer: It is workable to have the cable without the mark UL2725, but all properties and parameters remained.
Question 2: What is the conductor type? Can I have it as single solid copper?
Answer: Yes, UL2725 conductors can be the type of either strands or single solid one. But be noted single solid conductor may make the cable much harder than that by strands.
Question 3: What is the price of UL2725?
Answer: UL2725 refers to only a style number of the group of specifications. It is better to review the section of specification and select the desired spec firstly. For specific price, please contact the customer sales staff to ask.
